SMX-Scopio-A Probe

Single fiber inspection
Visual inspection
Manual focus
3.5" TFT display

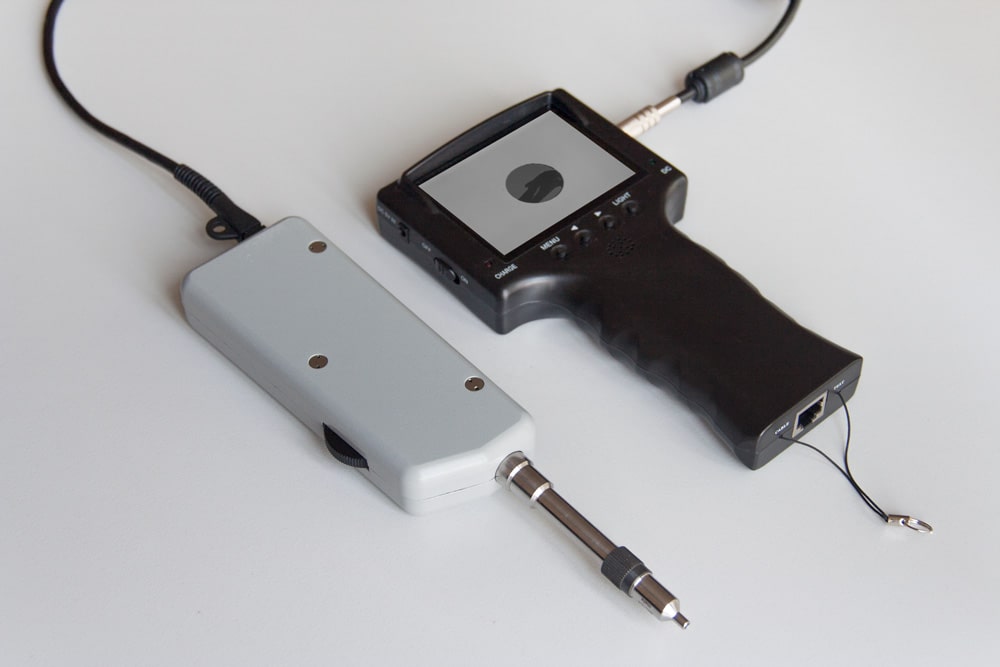

SMX-Scopio-A Probe is an analog fiber optic connectors' inspection device for visualization of the connector end faces. It features high resolution, allowing detection of contamination and scratches as small as 1 µm. The system comes complete with portable 3.5" TFT display. The device is designed for one-hand operation with an easy to use focusing system.

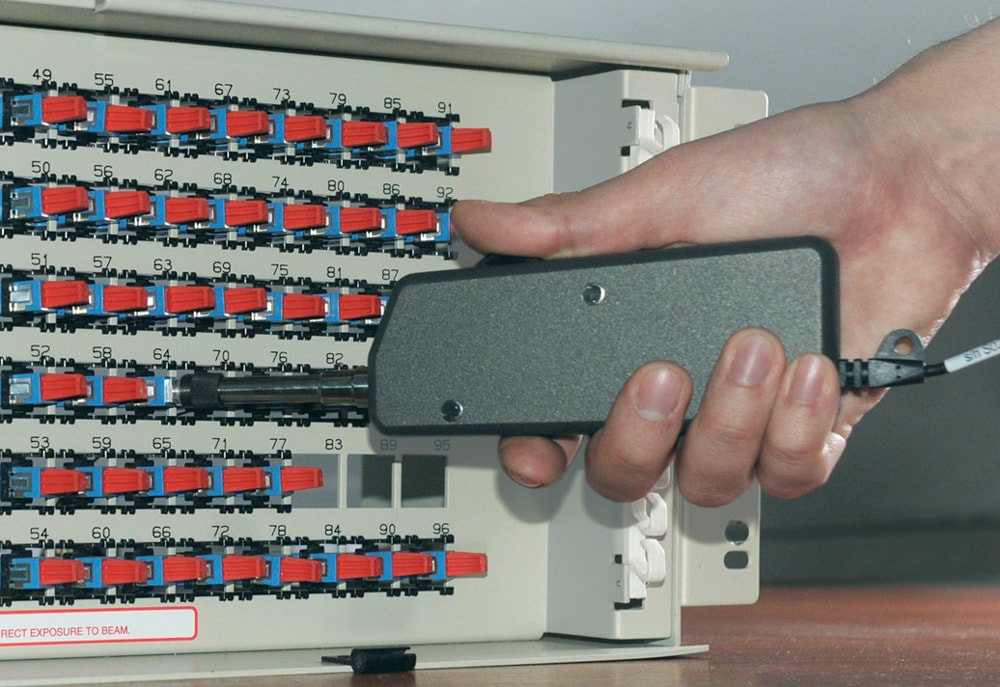

The probes can be used for either bulkhead or patch cord inspection, such as ST, FC, SC, LC, MU, E2000™ - PC and APC as well as MTP®/MPO, SMA and other military connections.

Features

High-quality optics

Identify defects as small as 1 µm. Evaluate a connector by its visualized surface.

Mini Jack connection

No external power source is needed, just connect directly to the charged portable 3.5" TFT display via the mini jack.

Long barrel

Need to inspect bulkhead connectors in patch panels? SMX-Scopio-A long barrel allows you to reach these types of connectors.

Flat surface of the case

Enjoy stability of the device – put it on surface and don't be afraid that it may roll down.

"Finger-friendly" focusing ring and high speed camera

Focus fast and save time on operations. Increase productivity and efficiency of your work.

Aluminum body, stainless steel barrel

Enjoy robustness of the device. Even if the probe is dropped down it maintains integrity. We are confident in quality of our product and provide one year warranty.

Sumix
Portable 3.5" TFT Display
  • Built-in rechargeable lithium battery
  • Battery status indicator
  • Compact size
  • Wrist strap and stand
  • Power supply: battery-powered, computer USB port power supply, adapter power supply

Kit Contents

SMX-Scopio-A analog system includes:
  • SMX-Scopio-A analog probe
  • 3.5” TFT display (rechargeable)
  • Case

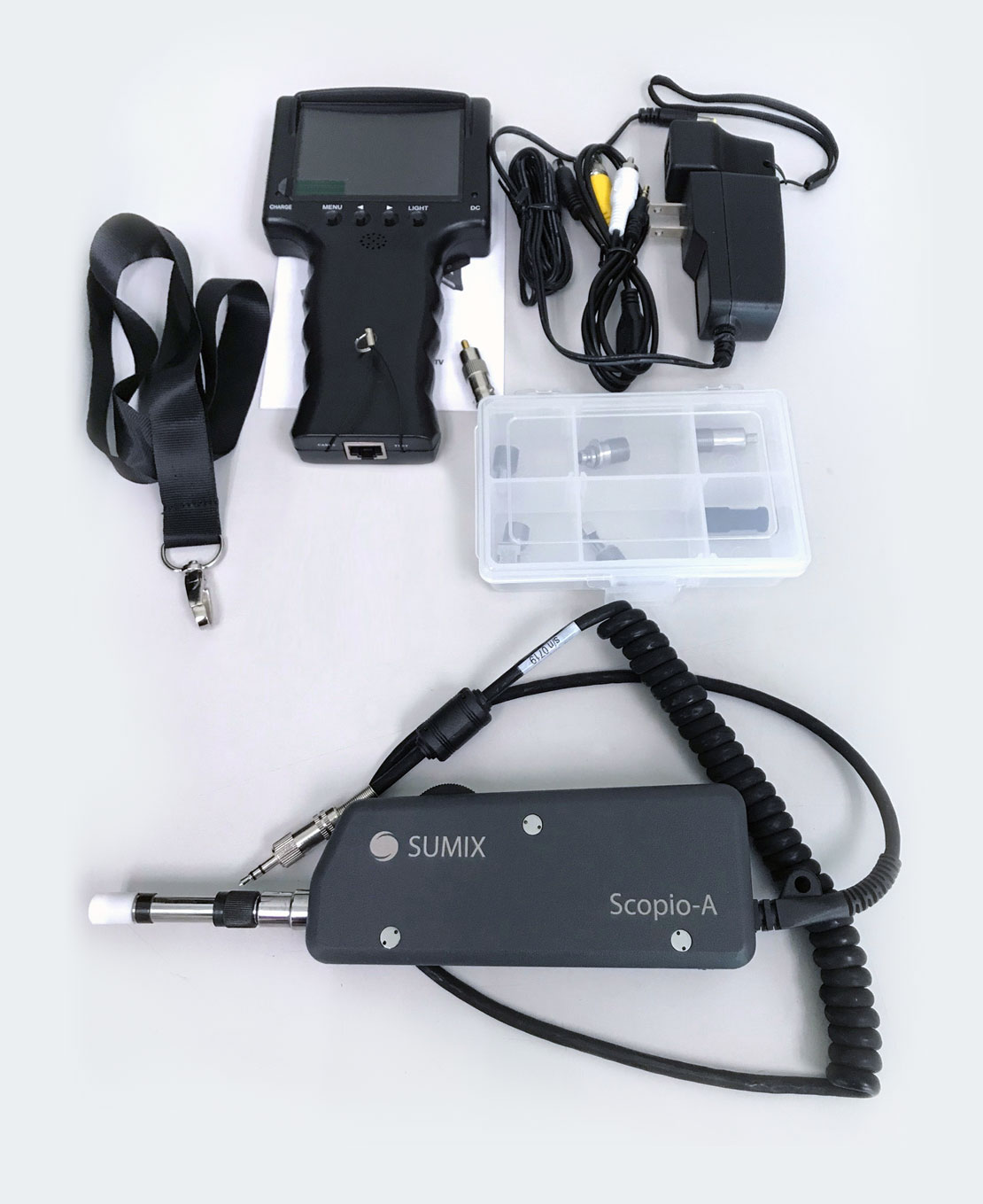

Scopio-A Kit Contents

Specification

General

Field of view:
d=0.4 mm
Defect size detection:
1 µm
Optical resolution:
2 µm
Magnification:
200×
Focus:
manual
Light source:
blue LED, wave length 470 nm
Camera type:
analog
Sensor type:
monochrome, 1/3’’ Sony CCD
Live image:
320 × 240 full resolution
Power source:
mini jack of 3.5" TFT display
Cable Connector:
mini jack
Dimensions (H × W × L):
56.3 × 25 × 201 mm (2.22 × 0.98 × 7.91 inches)
Weight:
330 g (0.73 lbs)
Housing material:
aluminum
Barrel material:
stainless steel

TFT Display

Voltage input:
5V±10% electrical current=2A
Battery:
DC3.7V (2200 mAh) (Rechargeable lithium battery)
Video signal format:
NTSC/PAL (auto-identity)
Video output mode:
1.0 Vp-p (full)
Charging time:
5-6 hours
Continuous operating time:
4-5 hours
Power output:
12V/350 mA
Dimensions (W × H × L):
24 × 75.3 × 114 mm (0.94 × 2.96 × 4.49 inches)
Weight:
352 g (0.78 lbs)

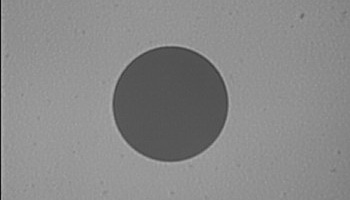

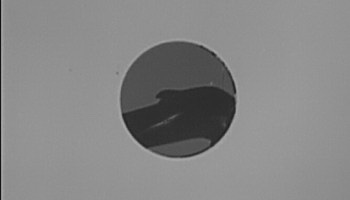

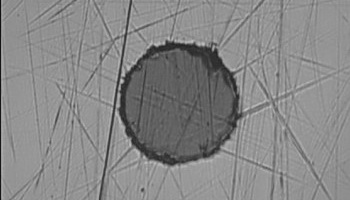

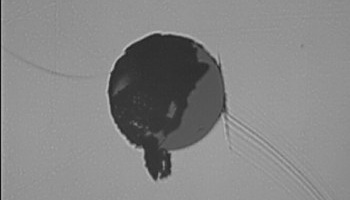

Sample Images
